Chicago Pneumatic
Authorized Texas Distributor
Chicago Pneumatic is a globally recognized brand offering a broad portfolio of industrial air solutions. With over 125 years of experience, CP is dedicated to providing high quality, reliable equipment that has stood the test of time as one of the most rugged compressors in the market. Innovative Oil Solutions provides full sales, service, and support for the complete Chicago Pneumatic product line across Texas.
QRS (Quiet Rotary Screw) Series Fixed Speed
Engineered for high performance, efficiency and reliability, the Chicago Pneumatic line of QRS (Quiet Rotary Screw) air compressors can meet the compressed air demands of a tire shop, maintenance shop, vehicle body shop, paint shop or automotive dealership. With its whisper quiet design the QRS can be installed almost anywhere, without disturbing your working environment.

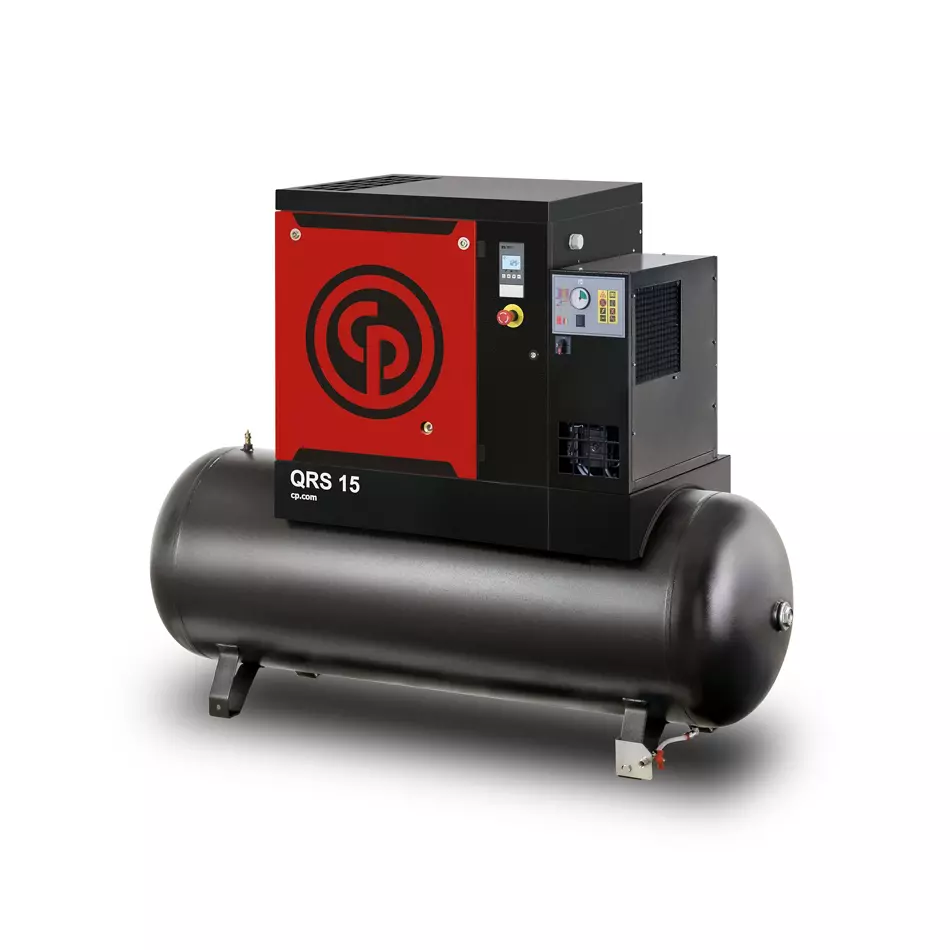

Our QRS rotary screw compressors can be base or receiver mounted, with or without dryer to have a compact and all-in one system. No wearing parts: increases reliability and reduces maintenance costs. Designed for continuous duty and very hard working conditions. Quiet by design, the QRS can be installed almost anywhere, without disturbing your working environment. The QRS 10-20M is managed by the ES4000 Connect Controller. The Connect Controller unlocks the power of next-generation compressor connectivity to give you next-level performance. Its state-of-the-art technology makes your compressor easier to operate, more reliable and more cost-efficient.

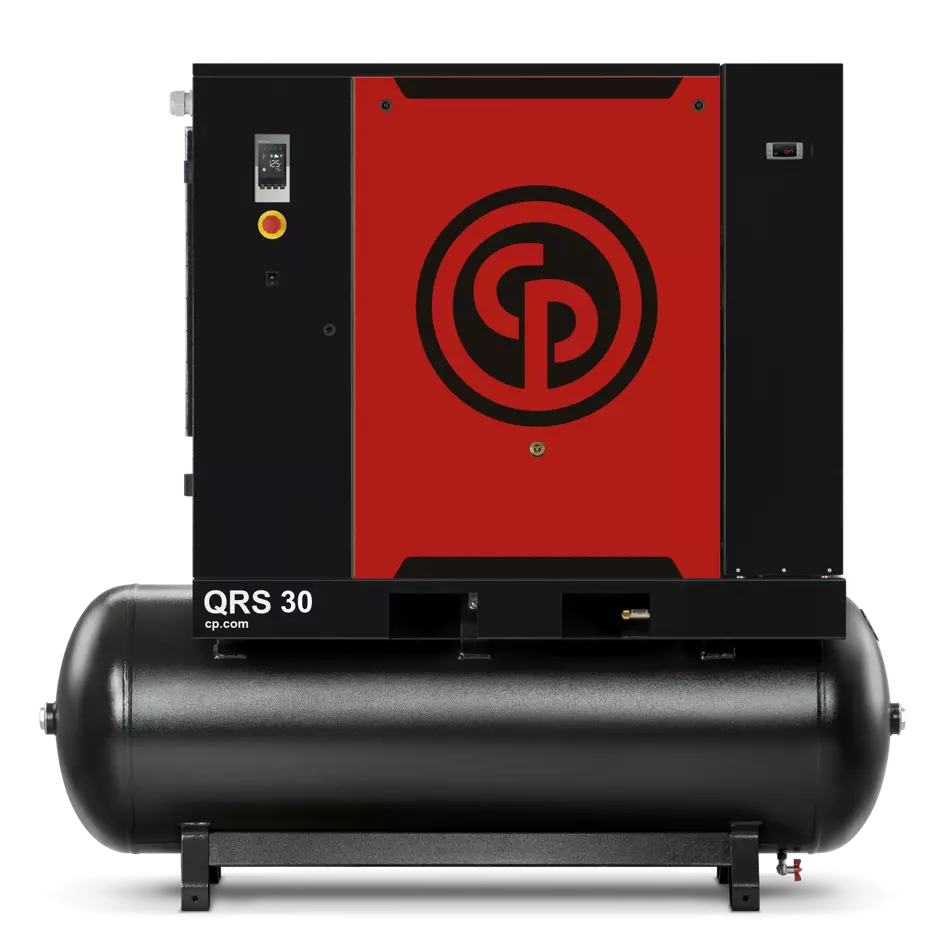

The QRS 20-30 is a rugged, rotary screw compressor that combines stealth with superior performance. Ideal for automotive and light industrial applications, the QRS is engineered and built to support the most demanding requirements. What makes rotary screw compressors so quiet is the fact that the helical screws don’t actually touch one another. A huge benefit of rotary screw compressors is that they can be mounted close to work spaces without requiring hearing protection. Designed to support the most demanding air requirements, QRS compressors run at a lower RPM’s. This means it can run indefinitely, non-stop, 24 hours a day.

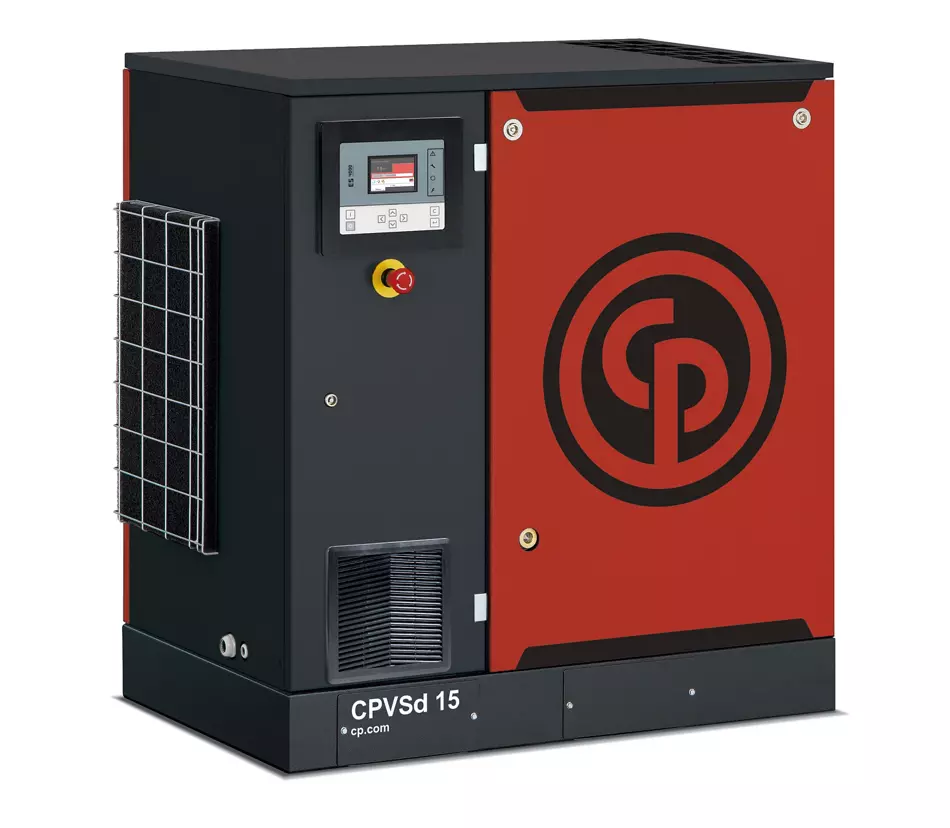

CPVS Series Variable Speed Rotary Screw
The CPVS variable speed compressor series allows you to find the perfect match between air demand and air supply. Thanks to the inverter driven technology, the energy cost could be reduced by up to 35%. This is the best in class compressor for your energy efficiency and minimum life cycle cost.
Up to 35% of energy savings and an average cut of 25% in the compressor lifecycle cost thanks to IE3 motors or Variable Speed technology, combined with the direct driven transmission design. Optimal efficiency, lubrication and cooling and long service intervals. Compact and all-in-one system, thanks to the oversized integrated dryers. No special foundation needed. All service components are located at the front of the machine for excellent accessibility. This rotary screw compressor range is available in Variable Speed direct-driven and Fixed speed gear driven versions. Customizable options include energy recovery to reduce energy bill and canopy heaters for low temperature installation.

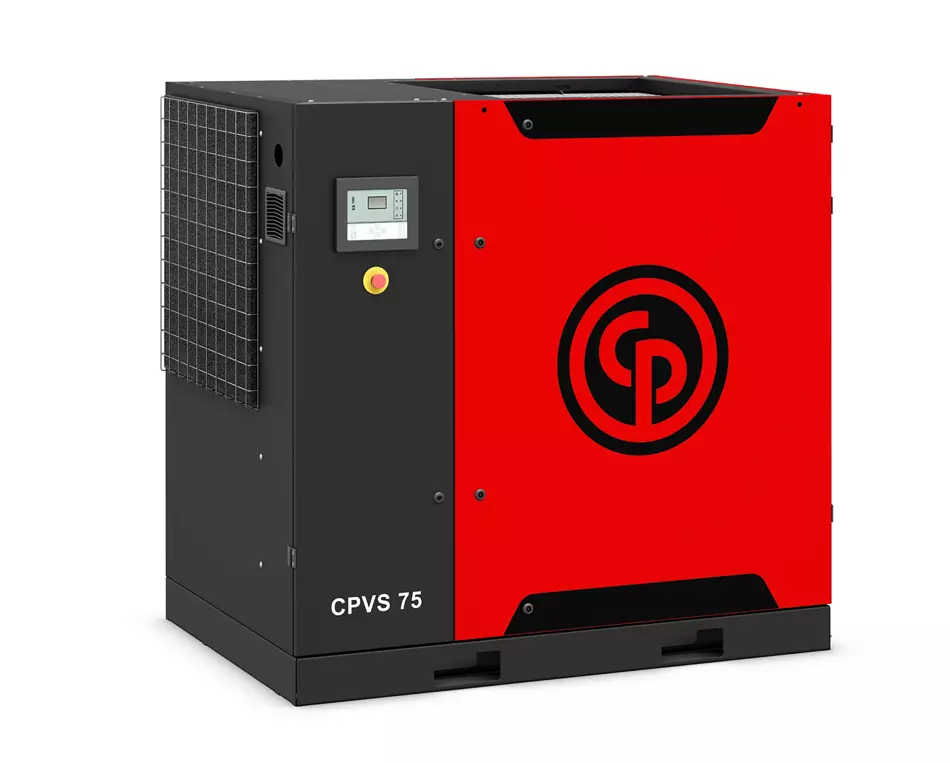

The Chicago Pneumatic CPVS range offers a wide choice of gear driven oil-injected screw compressors from 40 to 250 HP, with frequency inverter regulation. Powerful and efficient, with low energy consumption they will be ideal and the most cost effective decision for your application. Separate oil and air coolers, less thermal shocks, a longer lifetime. Working pattern with lower peaks and smoother air delivery. Lower energy consumption with a return of investment of typically 1-2 years. Easy check thanks to service door and improved integrated central ES 4000 controller. Our CPVS compressors control the air delivery and produce only the amount of compressed air that you need at a specific moment.
With operational efficiency in mind, Chicago Pneumatic has designed the CPVS PM, a range of variable speed direct driven compressors to offer your business a compressed air solution that adds value and saves you money at the same time. Our innovative drivetrain with an in-house designed interior permanent magnet motor (iPM), coupled with the Imperium inverter has evolved the energy efficiency of these variable speed compressors to a whole new level, bringing about energy savings of up to 45%. The CPVS’ maintenance-free components increase uptime and with it, boost productivity.
The CPVS 180-420 range consists of highly reliable gear driven oil-injected screw compressors equipped with variable speed technology that can reduce the energy cost with 35%. They have been designed to guarantee the lowest operating costs, highest uptime while being extremely user-friendly. Designed by our global engineering team, all key components are developed in-house or from reputable global suppliers ensuring highest quality. High quality filters protect internal components and ensure long lifetime of the compressor. The smart graphical controller monitors and protects various parameters to ensure safe operation at all times. Additionally, 75% of the heat generated by the compressor can be recovered with the integrated energy recovery option and used to heat up the plant, further reducing the energy bill.
CPC / CPD Series Oil-Injected Rotary Screw
Compact, easy to install oil-injected screw compressors with fixed speed control. Our CPC and CPD compressors use load/unload regulation — the compressor turns to unload mode as soon as the set pressure is reached, and then starts the routine again when the pressure drops below its level. This ensures a constant air capacity.
Our CPC belt driven oil-injected rotary screw compressors provide a compact and easy to install source of compressed air. Available from 40 to 60 hp, with or without dryer, with fixed speed control. Enjoy strong reliable performance alongside high energy efficiency. “All-in-one” design with no special foundation needed. All service components located at the front for excellent accessibility. With our outstanding first class components and a one person job service. Door can be used as a door or as a panel in case of a small floor space.

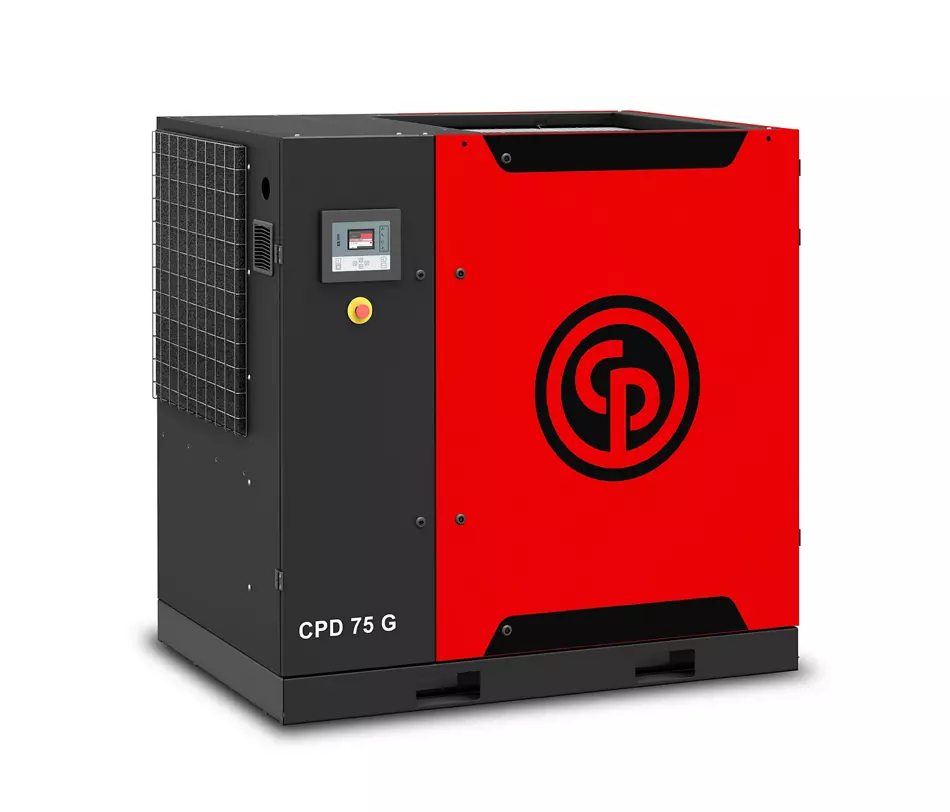

Our CPD compressors with fixed speed control use load/unload regulation. The compressor turns to unload mode as soon as the set pressure is reached, and then starts the routine again when the pressure drops below its level. This ensures a constant air capacity. The CPD series is designed with Chicago Pneumatic in-house design elements, which guarantees the quality of the compressed air and efficient operations. It includes separate coolers, air filter and an integrated fan. Thanks to the low noise levels, the CPD can be installed next to your workplace without disturbing the environment. The key benefits include integration of the ES4000 T controller with intelligent connectivity.
CPF / CPE Series Rotary Screw
The reliability of the CPE and CPF screw compressors will guarantee a continuous supply of compressed air thanks to a strict selection and qualification process of each component. Trouble-free operation and long lifetime are guaranteed. The CPE and CPF series help customers achieve higher pay-back and low life cycle cost.

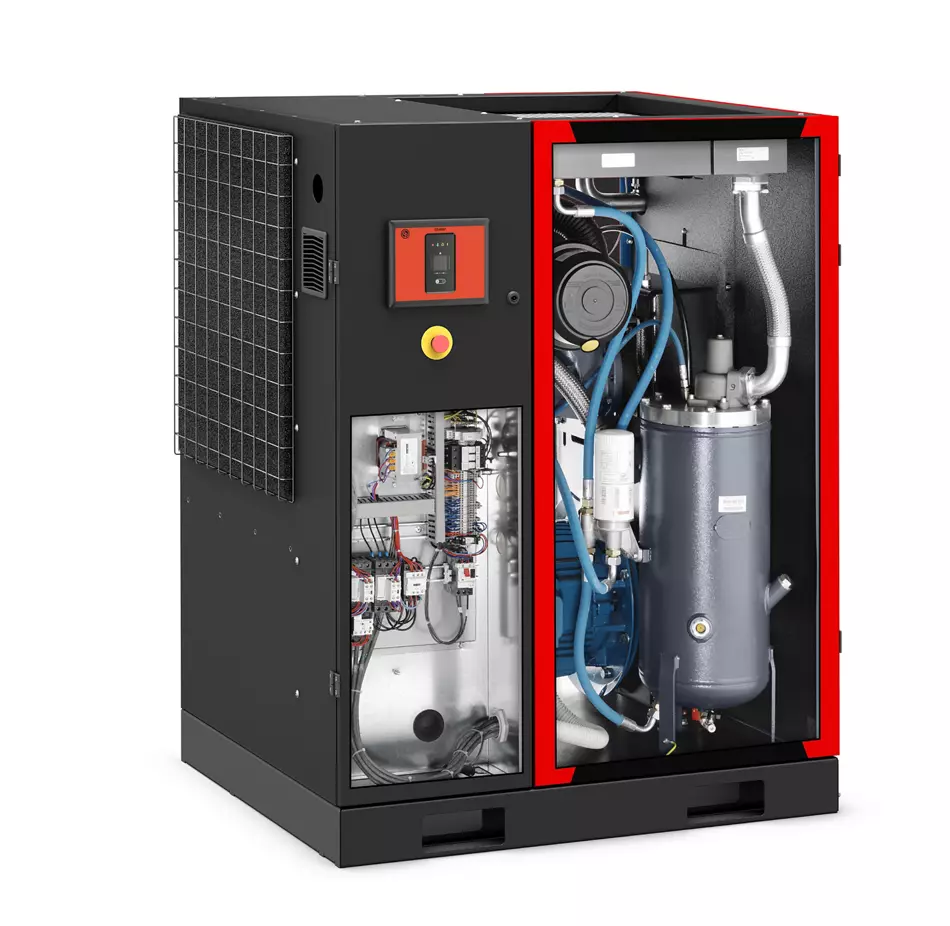

CPE/F ranges offer a flexible choice of compressors from 100 to 340 HP. The compressors are gearbox driven fixed speed. They have been designed to guarantee the highest uptime ensuring long and easy operation at the lowest operation costs. All components of the compressors have been selected meticulously. Engineering is based on advanced technology and production is subject to strict qualifications and testing procedures. The Smart Airlogic controller ensures flexible monitoring. The Airend contains two asymmetrical profile rotors mounted on superior-quality bearings and is gear driven to the IE3 electric motor for highest efficiency and reliability over time.
The in-house produced air-end with asymmetrical profile together with the premium efficiency IE3 motor results in more compressed air for minimum energy consumption. Separate air/oil coolers with high cooling capacity enables the compressor to operate all year round, even on the hottest summer days. Multiple service doors enable easy access for service technicians to carry out maintenance. The controller with a large colored graphical display is easy to read and indicates a clear service schedule. Choosing the heavy duty gearbox solution offers you efficient power transmission and high reliability, lower maintenance costs, no transmission losses, nor belt tensioning. All compressors have a low noise level for compatibility with most operating environments. All connections are accessible from the same side for installation.
RCP Reciprocating Compressors
Chicago Pneumatic designs rugged, tough, durable piston compressors for multiple industries where air demands aren’t constant. With durability, performance, solid cast iron cylinder, crankshaft and valve plates the RCP provides the strength that is required for everyday use. All units are 100% factory tested.

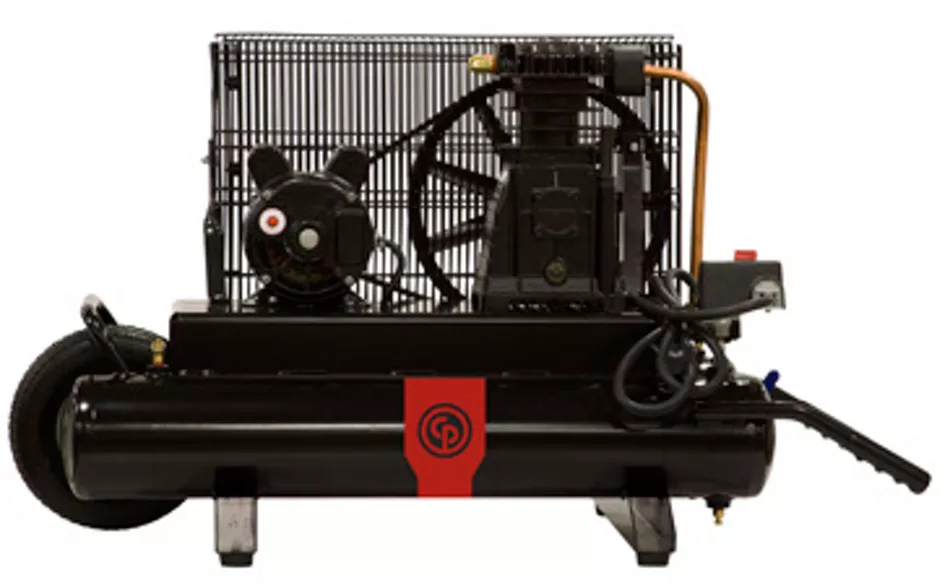

Ideally suited for home use and construction applications, the RCP Contractor series provides affordable compressed air in a portable package. Boasting a low profile, semi-pneumatic wheel, heavy gauge wire belt guard and rugged pump design, Contractor Series compressors provide convenient point-of-use versatility. Models with electric or gas drive are available, delivering up to 25 cfm @ 100 psig. Single-stage and two-stage varieties with diverse horsepower ratings. Available currently in 11-16 hp gas models that can deliver between 18-35 acfm and are built for the most serious service professional.

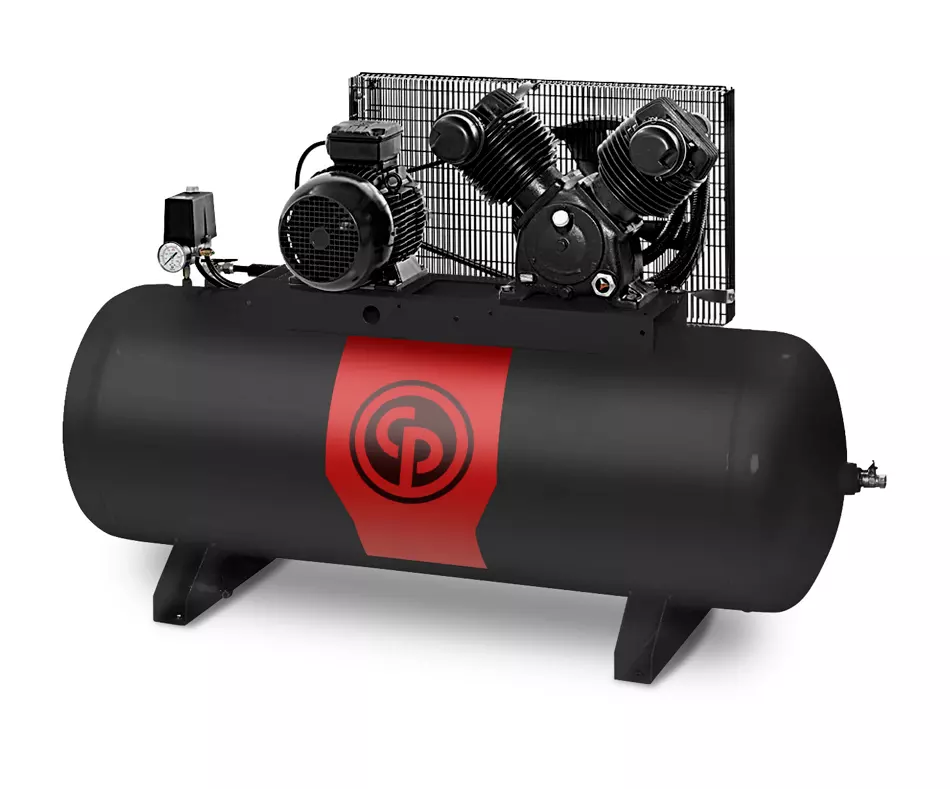

Chicago Pneumatic’s Iron Series Compressors feature all cast iron design pumps. The RCP-C duplex compressors are available up to 20 HP and can deliver up to 21 acfm on single phase and 70 acfm on 3 phase power. Models include simplex compressors up to 10 hp and duplex models from 10-20 hp. All Iron Series Compressors come with the 2 Year CP Secure Warranty with no additional purchase required. Aluminum head and coolers with deep fins allow for unmatched heat dissipation. Balanced pistons and crankshaft mean smoother and quieter operation. Over-sized main bearings and automotive style replaceable insert bearings for a durable compressor pump.

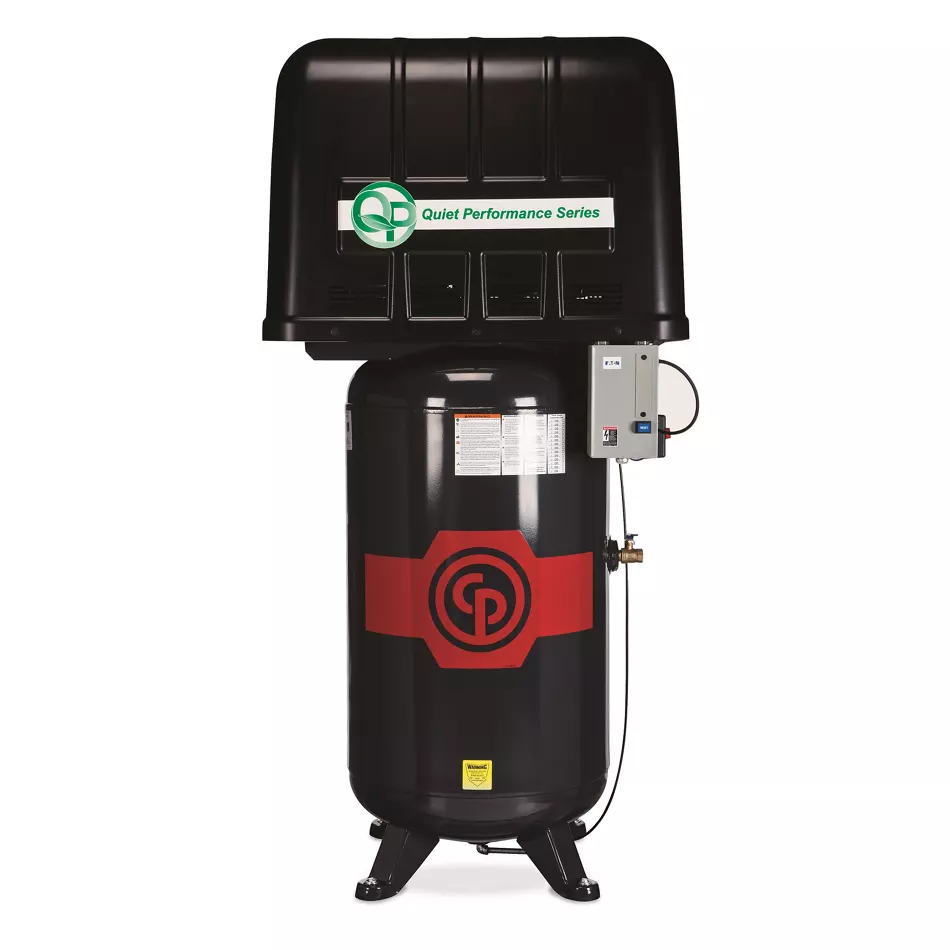

The RCP compressor packages are available from 5-7.5 hp delivering 15-25 acfm @ 100 psig. Each compressor comes complete with everything you need to optimize your work and minimize down time. All RCP two stage compressors come with a full 2 year warranty (including valves). With durability, performance, solid cast iron cylinder, crankshaft and valve plates the RCP provides the strength that is required for everyday use. Aluminum head and coolers with deep fins allow for unmatched heat dissipation. Balanced pistons and crankshaft mean smoother and quieter operation.

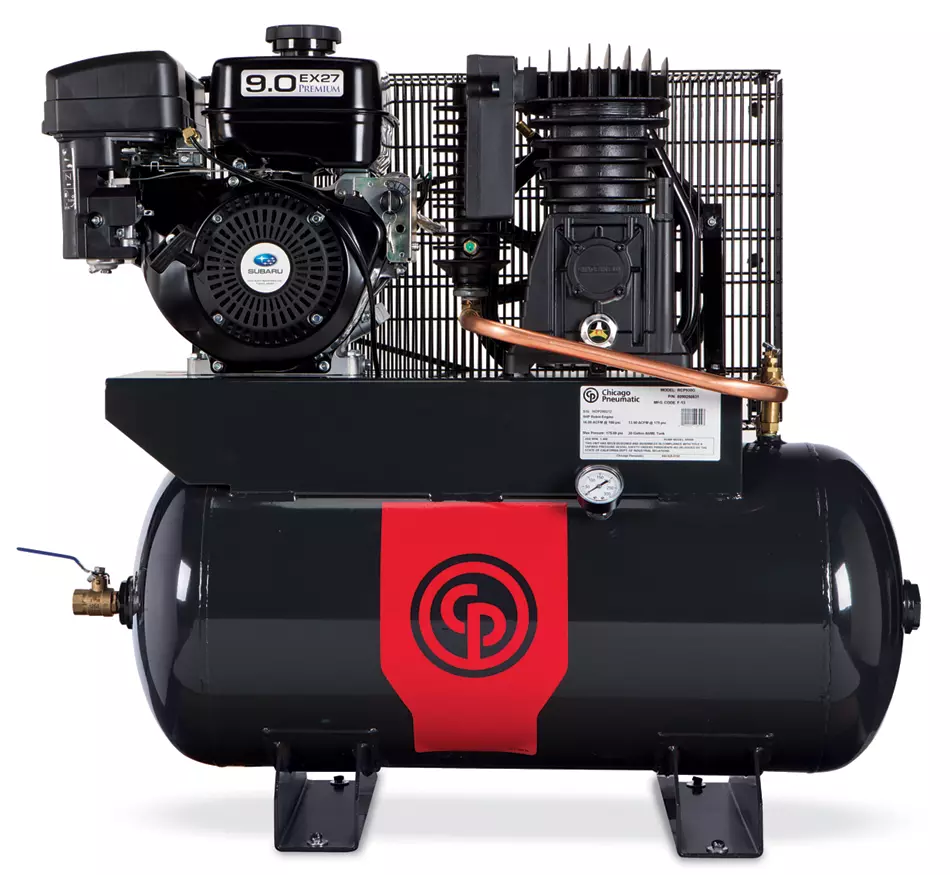

Precision engineered in a rugged package; complete with receiver tank, electric and recoil start and an operating pressure up to 175 psi, the RCP will get the job done. RCP two stage compressors come with a full 2 year warranty (including valves). Built for the service professional and delivering up to 25 acfm, these RCP compressors can handle the toughest situation. Standard features include 12 Volt electric start and recoil start, 12 Volt alternator (Honda and Kohler Models), start key/panel, oil monitor, engine slowdown (pilot valve), fully enclosed belt guard, EZ pull tank drain, and ASME tank and safety valves.
